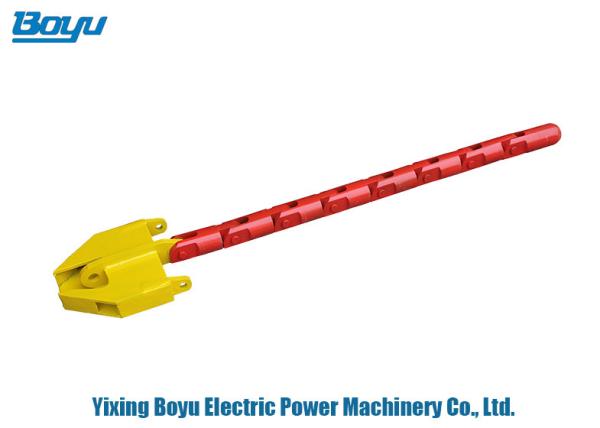

Small Head Board Transmission Tools And Equipment For Bundled Conductor

Name: Small Head Board Transmission Tools And Equipment For Bundled Conductor
Brand: Boyu
Price: 1 USD

Small Head Board Transmission Tools And Equipment For Bundled Conductor Manufactures

Brand Name : Boyu

Model Number : TYSZ

Certification : ISO9001

Place of Origin : China (Mainland)

MOQ : 2

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 10000 Sets/Month

Delivery Time : 15~30 days

Packaging Details : Wooden case

Type : Head board For Bundled Conductor

Description : One rope pulling two conductors

Rated Load : 60kN

Weight : 12.5kg

Pulley wheel width : 75mm

Remark : Conductor separated

Contact Now

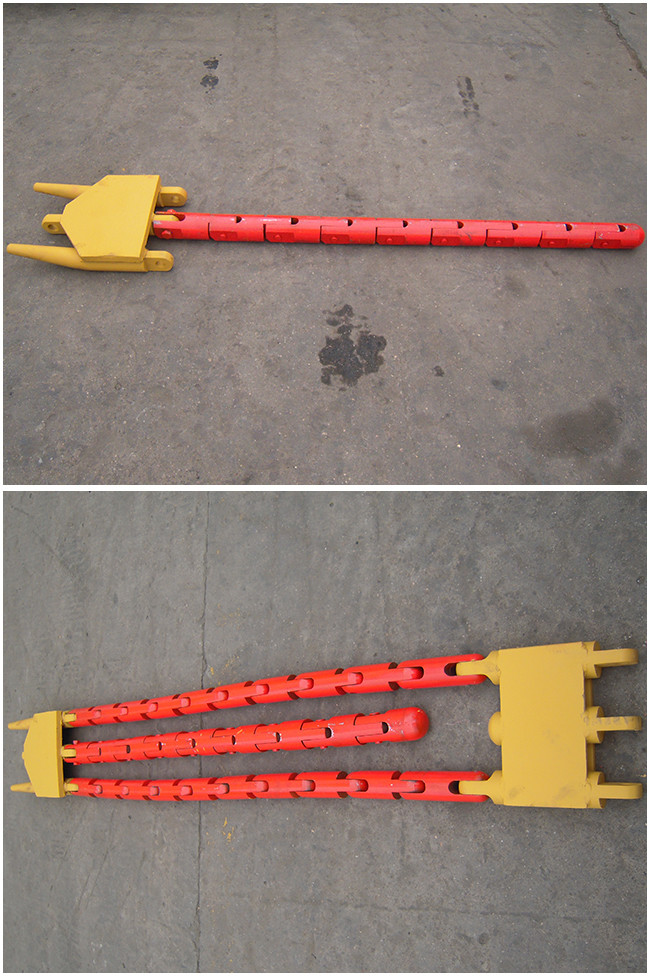

Transmission Line Stringing Tools Accessories Head board For Bundled Conductor

The head board is designed to connect the pulling rope (max 28mm) with 2 to 5 bundled conductors. Special models with different characteristics can be designed according to customer's needs.

Model	Description	Rated load (kN)	Weight (kg)	Pulley wheel width (mm)	Remark
SZ2-6-75	One rope pulling two conductors	60	12.5	75	Conductor separated
SZ2-8-100	One rope pulling two conductors	80	17	100
SZ2-13-110	One rope pulling two conductors	130	110	110
SZ2-18-125	One rope pulling two conductors	180	125	125
SZ3-10-100	One rope pulling three conductors	100	99	100
SZ3-13-110	One rope pulling three conductors	130		110
SZ4-13-100	One rope pulling four conductors	130	96	100
SZ4-18-110	One rope pulling four conductors	180	90	110
SZ4-25-110	One rope pulling four conductors	250	105	110
SZ4-32-125	One rope pulling four conductors	320	150	125
SZ6-25-100	One rope pulling six conductors	250	140	100
SZ2A-8-75	One rope pulling two conductors	80	100	75	Balance Pulley
SZ2A-8-100	One rope pulling two conductors	80	100	100
SZ2A-8-110	One rope pulling two conductors	80	100	110
SZ3A-8-75	One rope pulling three conductors	80	100	75
SZ3A-10-100	One rope pulling three conductors	100	114	100
SZ3A-13-110	One rope pulling three conductors	130	130	110
SZ3A-18-110	One rope pulling three conductors	180	140	110
SZ3A-18-125	One rope pulling three conductors	180	155	125
SZ4A-13-100	One rope pulling four conductors	130	127	100
SZ4A-13-110	One rope pulling four conductors	130	140	110
SZ4A-18-110	One rope pulling four conductors	180	155	110
SZ4A-18-125	One rope pulling four conductors	180	160	125

Small Head Board Transmission Tools And Equipment For Bundled Conductor
